Description
Pneumatic Drum Brake
Overview: YW series pneumatic drum brakes are mainly used for the braking of various mechanisms in lifting, transportation, metallurgy, mining, ports, construction and other machinery; its installation dimensions conform to DIN15435 and JB/T7021-2006 standards, and technical requirements conform to JB /T6406-2006 standard.
Conditions of Use:
Ambient temperature: -20℃ -50℃.
There should be no flammable, explosive and corrosive gases in the surrounding working environment, otherwise anti-corrosion products should be used.
The relative humidity of the air is not more than 90%.
Working pressure:
0.5-0.7MPa

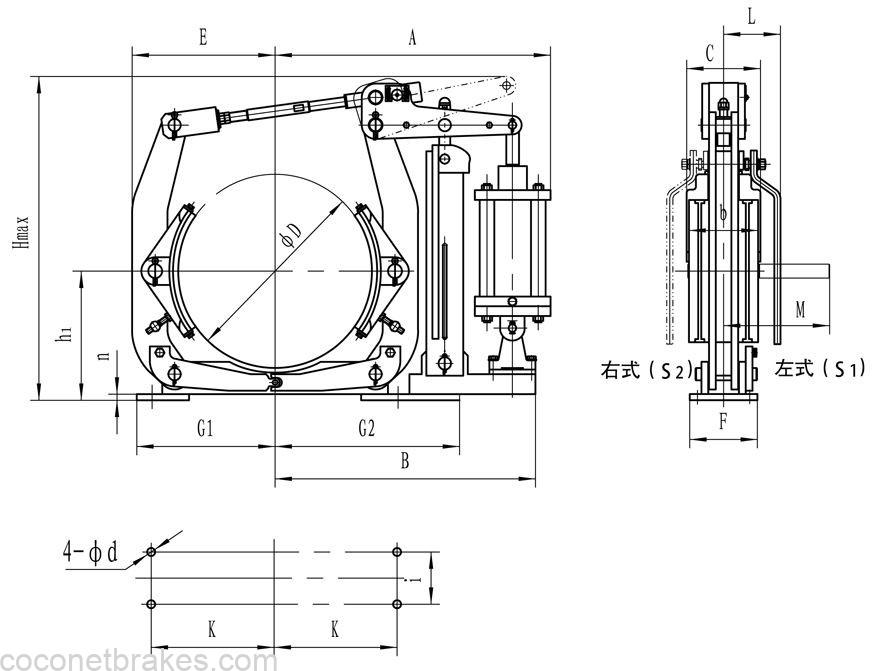

| Model | Braking torque(Nm) | Clearance | B | A | b | C | D | d | E | F | G1 | G2 | Hmax | h1 | i | K | M | n | L | Weight | Air inlet size | |
| Brake | Matching cylinder | (mm) | (kg) | |||||||||||||||||||
| YW-160/032×60 | QGA32x60MP2JY | 80-160 | 1 | 324 | 332 | 65 | 47 | 160 | 14 | 145 | 85 | 145 | 195 | 440 | 132 | 55 | 130 | 105 | 8 | 145 | 24 | M10x1 |
| YW-200/Q32X60 | QGA32x60MP2JY | 100-335 | 401 | 372 | 70 | 47 | 200 | 14 | 175 | 90 | 165 | 255 | 500 | 160 | 55 | 145 | 118 | 10 | 150 | 26.5 | ||
| YW-250/Q32X60 | QGA32x60MP2JY | 125-350 | 1 | 473 | 437 | 90 | 47 | 250 | 18 | 205 | 110 | 200 | 290 | 585 | 190 | 65 | 180 | 149 | 12 | 180 | 36 | M10x1 |
| YW-250/Q40X60 | QGA40x60MP2JY | 300-550 | 440 | 54 | M14x1.5 | |||||||||||||||||
| YW-315/032×60 | QGA32x60MP2JY | 150-450 | 1.25 | 528 | 492 | 110 | 47 | 315 | 18 | 255 | 115 | 245 | 330 | 585 | 230 | 80 | 220 | 174 | 17 | 170 | 55.5 | M10x1 |
| YW-315/040×60 | QGA40x60MP2JY | 315-710 | 495 | 54 | 56 | M14x1.5 | ||||||||||||||||
| YW-315/050×60 | QGA50x60MP2JY | 630-1250 | 501 | 66 | 59.5 | |||||||||||||||||
| YW-400/Q32X60 | QGA32x60MP2JY | 200-470 | 1.25 | 615 | 575 | 140 | 47 | 400 | 22 | 310 | 160 | 310 | 420 | 715 | 280 | 100 | 270 | 211 | 14 | 170 | 117 | M10x1 |
| YW-400/Q40X60 | QGA40x60MP2JY | 400-800 | 577 | 54 | 118 | M14x1.5 | ||||||||||||||||
| YW-400/Q50X60 | QGA50x60MP2JY | 630-1250 | 585 | 66 | 775 | 119 | ||||||||||||||||
| YW-400/Q63X60 | QGA63x60MP2JY | 1000-2240 | 588 | 76 | 121 | M18x1.5 | ||||||||||||||||
| YW-500/Q50X60 | QGA50x60MP2JY | 800-1600 | 1.25 | 724 | 682 | 180 | 66 | 500 | 22 | 390 | 180 | 365 | 535 | 815 | 340 | 130 | 325 | 270 | 21 | 180 | 155 | M14x1.5 |
| YW-500/Q63X60 | QGA63x60MP2JY | 1250-2500 | 687 | 76 | 835 | 170 | M18x1.5 | |||||||||||||||
| YW-500/Q80X60 | QGA80x60MP2JY | 2000-4000 | 697 | 96 | 845 | 174 | ||||||||||||||||
| YW-630/Q63X60 | QGA63x60MP2JY | 1600-3150 | 1.6 | 847 | 810 | 225 | 76 | 630 | 26 | 470 | 220 | 450 | 600 | 1035 | 420 | 170 | 400 | 330 | 20 | 185 | 276 | M18x1.5 |
| YW-630/Q80X60 | QGA80x60MP2JY | 2500-5000 | 820 | 96 | 280 | |||||||||||||||||
| YW-630/Q100x60 | QGA100x60MP2JY | 3550-7100 | 830 | 115 | 287 | M22x1.5 | ||||||||||||||||
| YW-710/063×60 | QGA63x60MP2JY | 1000-3250 | 1.6 | 905 | 870 | 255 | 76 | 710 | 27 | 520 | 240 | 500 | 650 | 1135 | 470 | 190 | 450 | 372 | 25 | 220 | 401 | M18x1.5 |
| YW-710/080×60 | QGA80x60MP2JY | 2500-5600 | 880 | 96 | 406 | |||||||||||||||||
| YW-710/0100×60 | QGA100x60MP2JY | 4000-8000 | 890 | 115 | 517 | M22x1.5 | ||||||||||||||||
